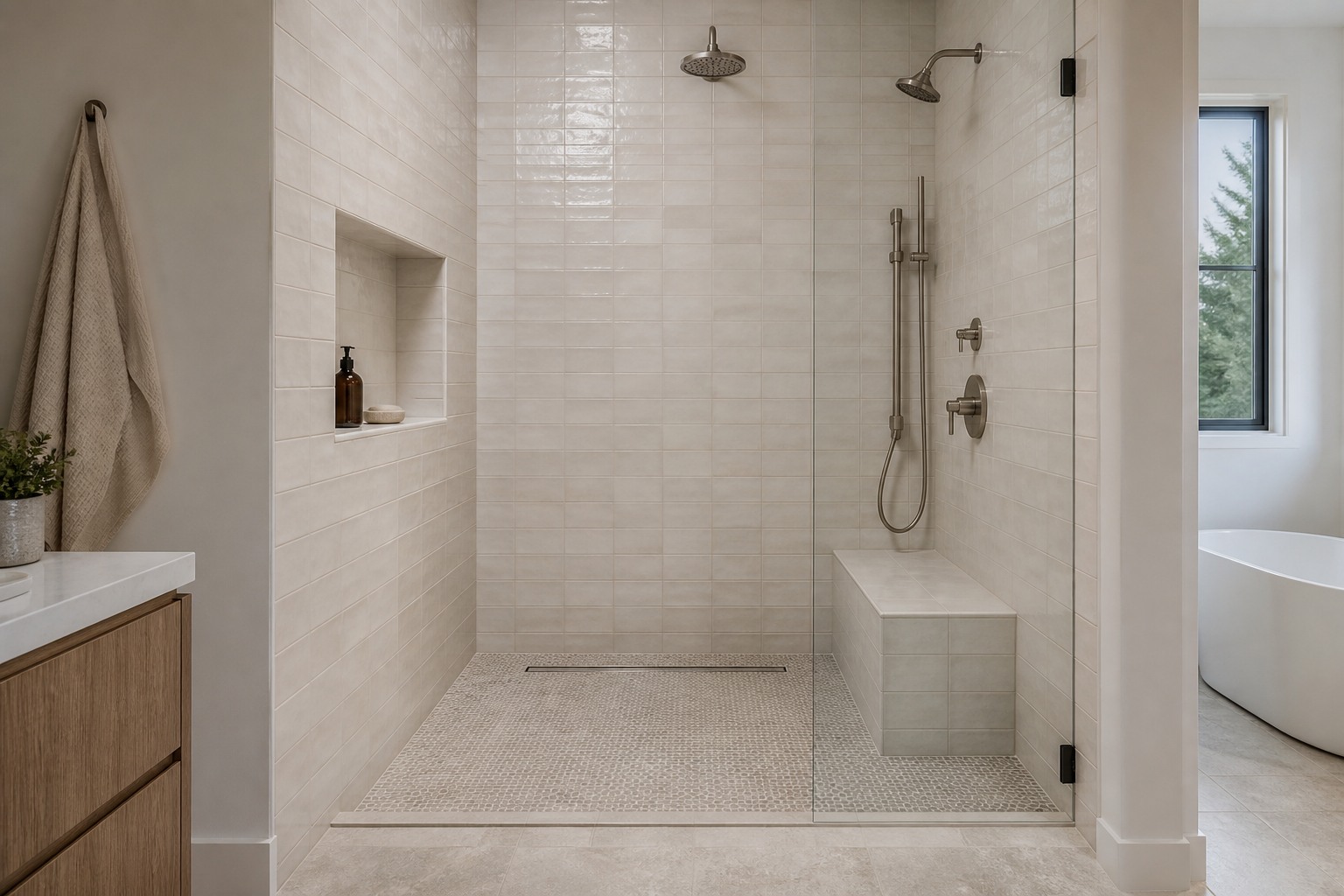

Curbless Showers & Linear Drains in Toronto

We build curbless showers with a continuous waterproofing envelope and a single-plane slope to a linear drain. This approach supports larger floor tiles, cleaner lines, and easier entry—while keeping water moving exactly where it should. Drain placement, glass alignment, and tile layout are coordinated so the entry is flush, the slope is consistent, and the room stays easy to clean.

Since 2010

5.0 Google rating

WSIB/insured

6-Person Crew

Or get started with our quick estimate form →

GET A FREE ESTIMATE

Choose drain placement — we plan the slope

Linear drains enable single-plane slopes and larger tile choices. Explore different drain locations and see how slope direction affects your design.

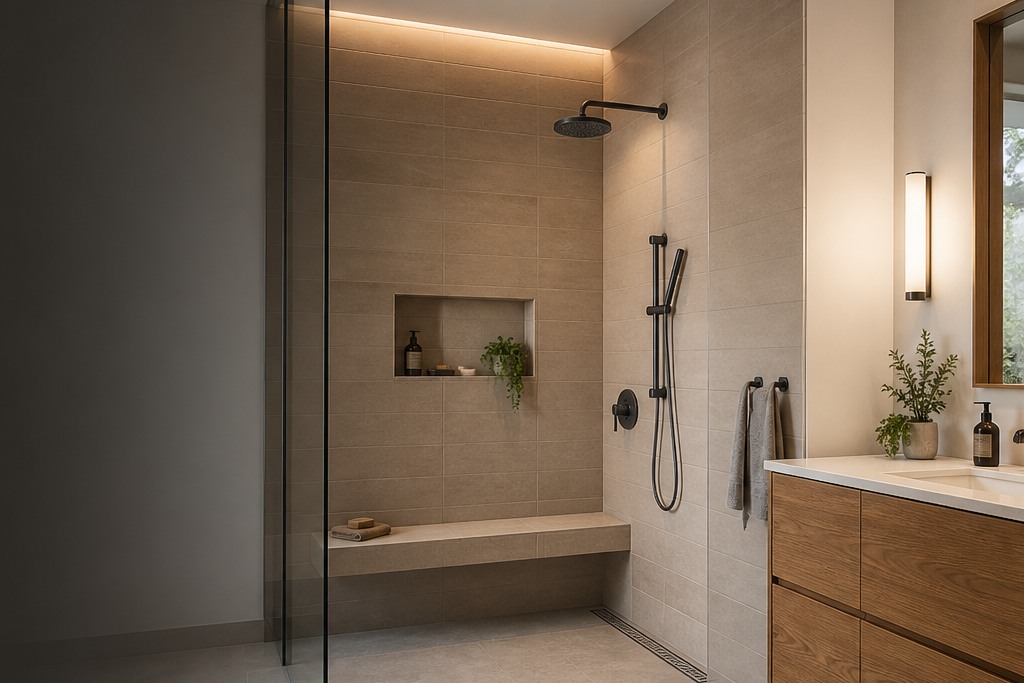

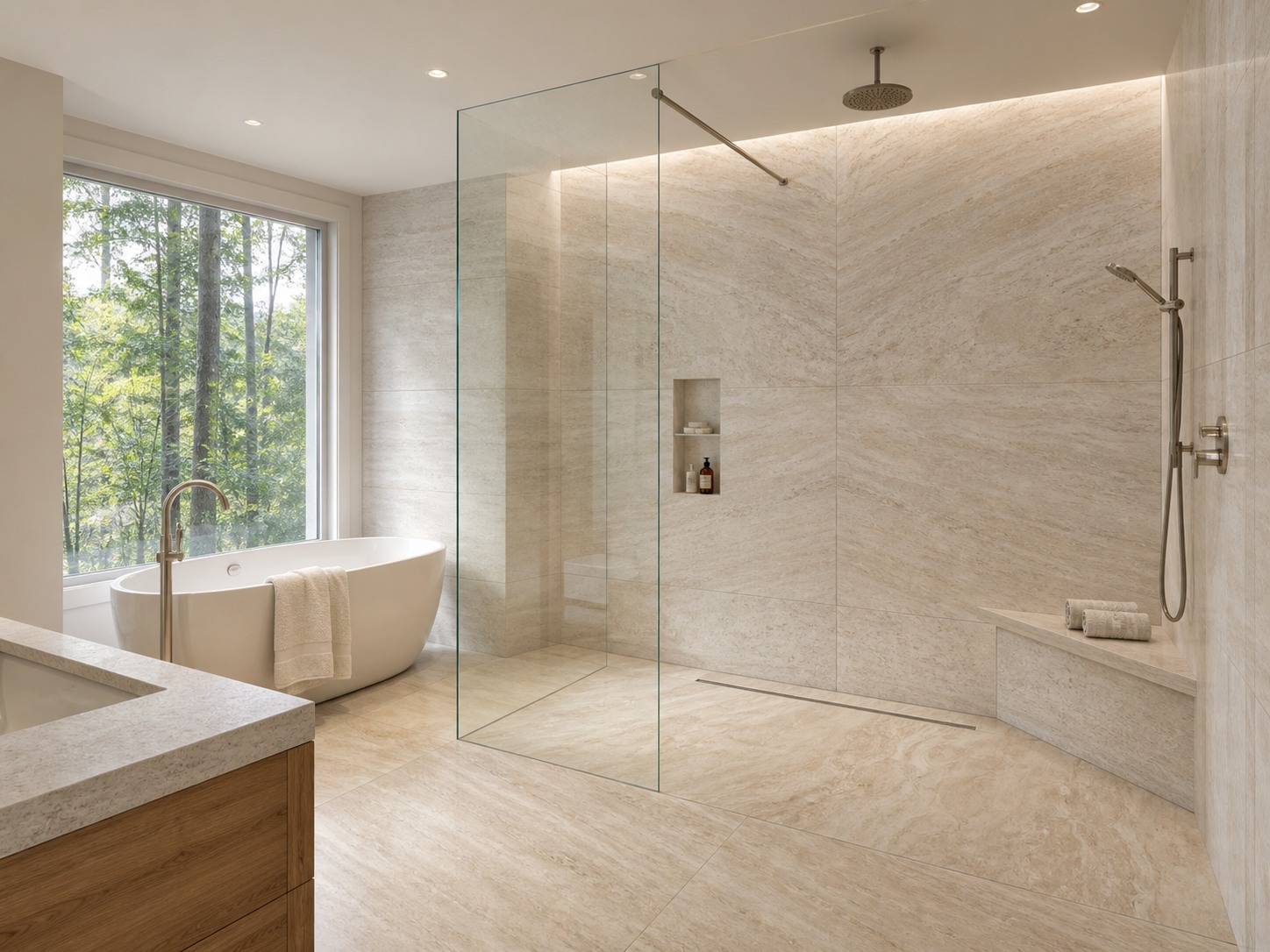

Back-Wall Drain

Linear drain against back wall with single-plane slope from entry to drain.

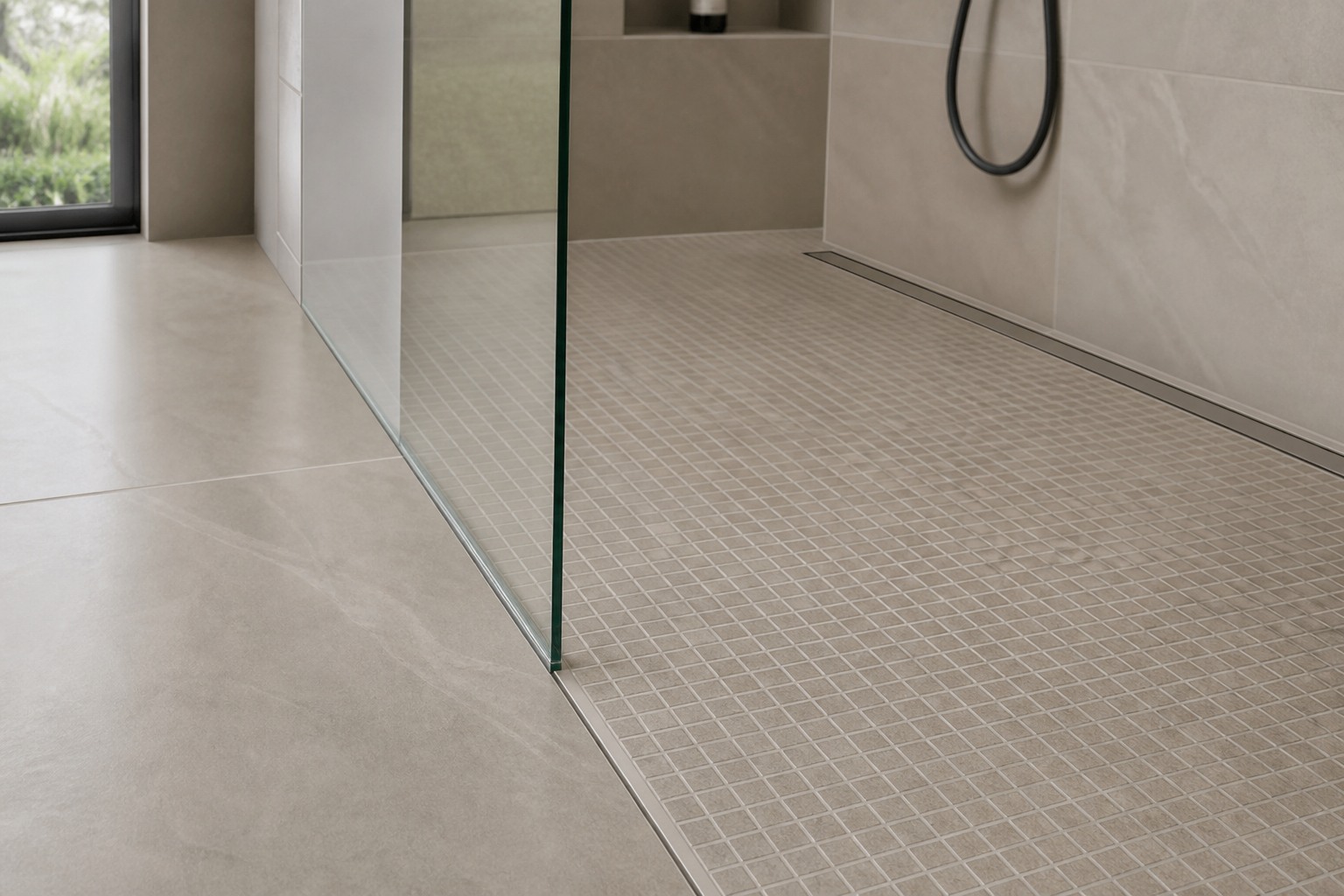

Threshold Drain

Linear drain at entry captures water before it escapes the shower zone.

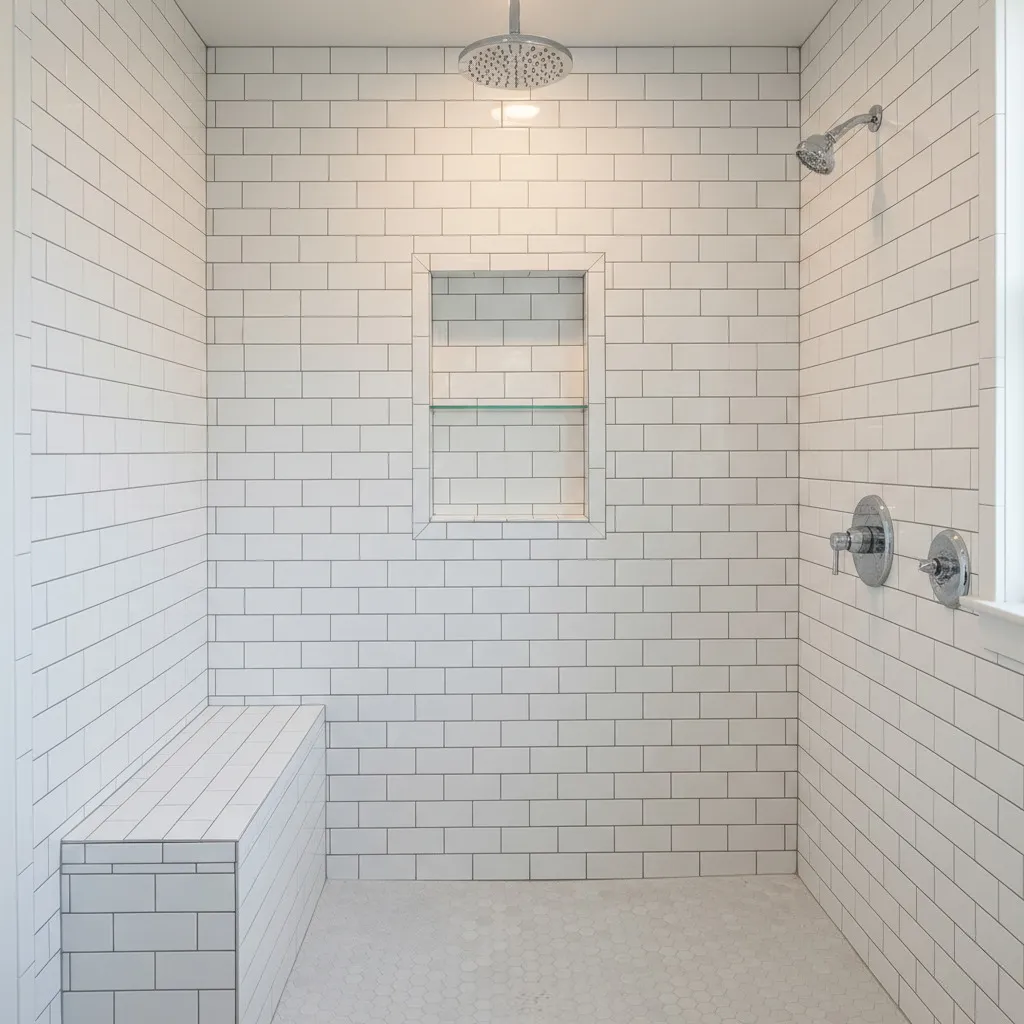

Centre Drain

Four-way slope to centred drain with mosaic tiles for contouring.

Our Clients

Share Their Experience

Watch our customers describe their tile installation experience and see the quality
results we deliver across the GTA.

"Mallet Tile transformed our dated bathroom into a spa-like retreat. The attention to detail from start to finish was exceptional."

"These guys showed up when they said they would, got the job done right, and didn’t cut corners. That’s what matters on site"

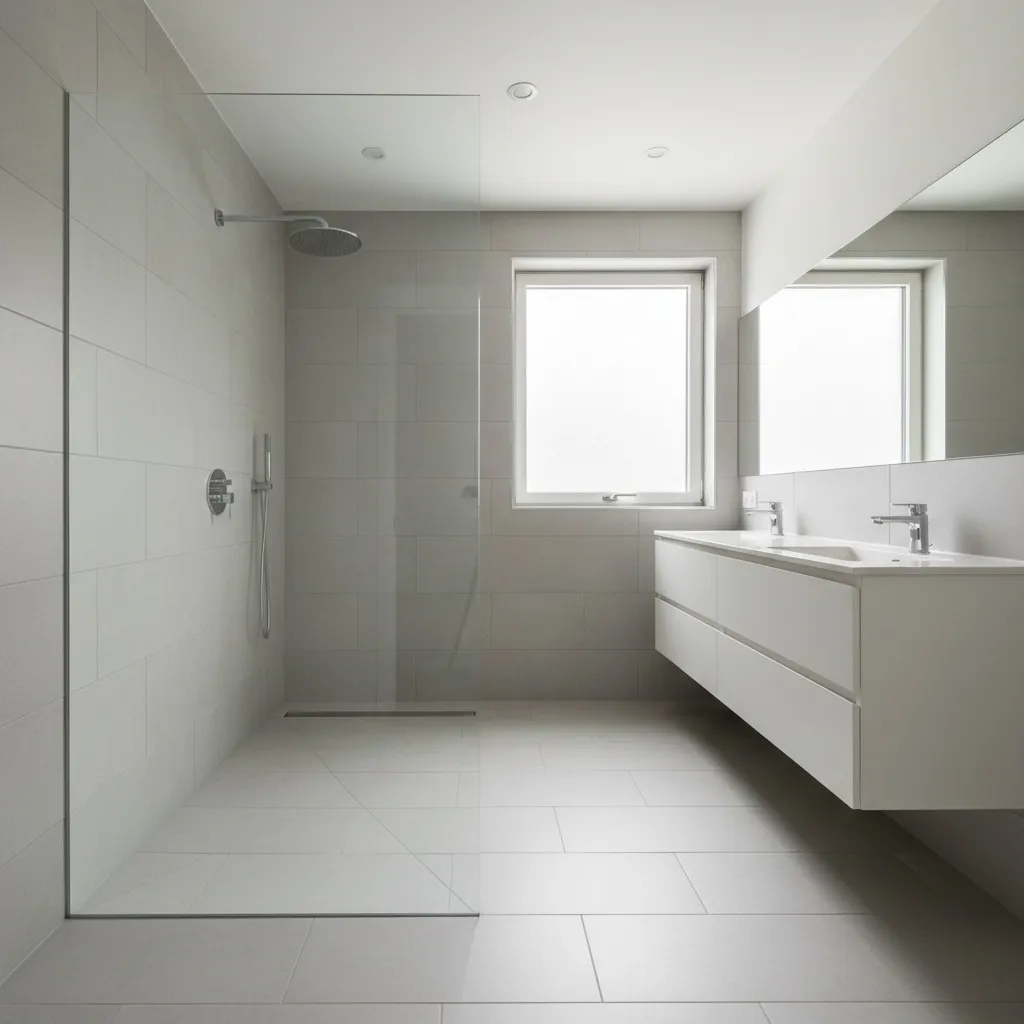

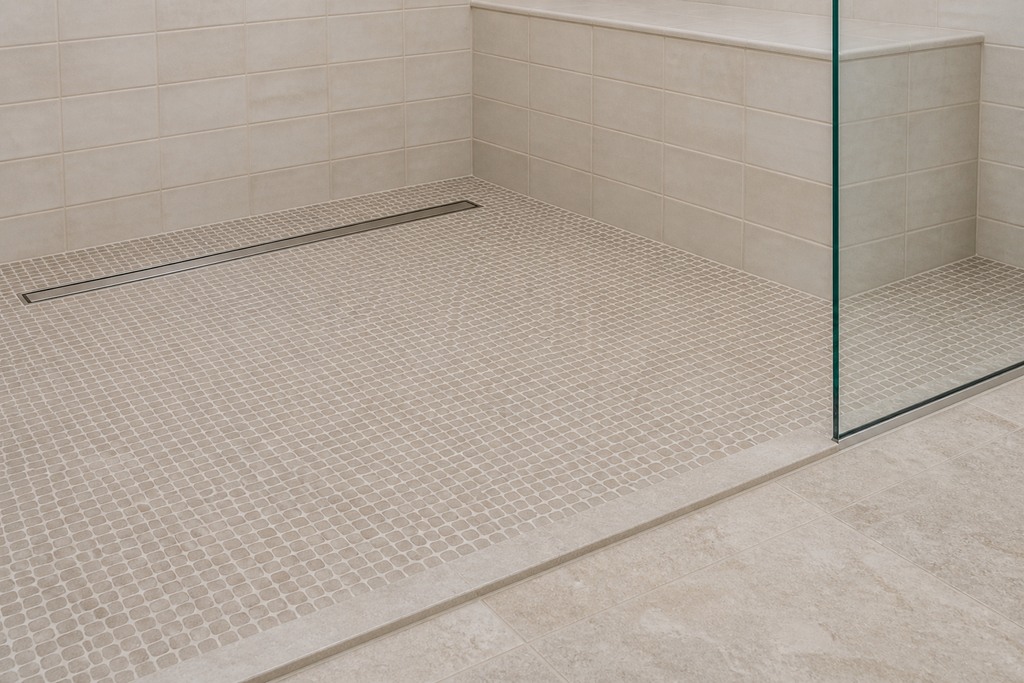

Floor transitions that flow seamlessly

Movement accommodation joints are required at perimeters and changes of plane. See how different floor materials connect to your curbless shower.

Tile-to-Tile

Continuous tile from bathroom floor into shower with height matching and soft joints at plane changes.

Tile-to-LVP

Transition from luxury vinyl plank bathroom floor to ceramic shower tiles with profile transitions.

Tile-to-Stone

Natural stone bathroom floor transitioning to ceramic or porcelain shower with slim profiles.

A curbless shower blends accessibility with minimalist design—and the build quality determines both performance and appearance. By sloping the floor in one direction to a linear drain, we maintain a flat plane outside the shower and simplify tile layout. We install a continuous sheet membrane, detail corners and penetrations, and plan glass lines so water is captured without a raised threshold. Where centre drains make sense, we adjust layout for the required multi-directional slope. The result: a seamless, easy-entry shower that’s comfortable, safe, and easy to maintain.

Barrier-Free Benefits

Curbless showers deliver both accessibility and modern design—benefits
you’ll appreciate every day.

bathroom tile installation Toronto, bathroom tile contractor Toronto, bathroom floor tile installation Toronto, shower tile Toronto

Barrier-free entry

Smooth transition from bathroom floor into the shower, supporting accessibility and aging-in- place.

bathroom tile installation Toronto, bathroom tile contractor Toronto, bathroom floor tile installation Toronto, shower tile Toronto

Cleaner aesthetics

One direction of fall to a linear drain allows larger tiles and fewer grout lines for a modern look.

bathroom tile installation Toronto, bathroom tile contractor Toronto, bathroom floor tile installation Toronto, shower tile Toronto

Effective drainage

Single-plane slope with a wide capture zone at wall or threshold reduces splash-back.

bathroom tile installation Toronto, bathroom tile contractor Toronto, bathroom floor tile installation Toronto, shower tile Toronto

Low maintenance

Fewer corners and simplified squeegee path; soft joints at plane changes to protect finishes.

bathroom tile installation Toronto, bathroom tile contractor Toronto, bathroom floor tile installation Toronto, shower tile Toronto

Movement joints protect your investment

At perimeters and changes of plane, we use elastomeric sealant as soft joints instead of grout—per EJ171 guidance—to accommodate movement and protect the assembly.

Systems we trust

Curbless showers require specialized systems for drainage, waterproofing, and movement accommodation. We use proven Schluter components designed to work together for leak-proof assemblies.

Schluter

Kerdi waterproofing systems & Ditra uncoupling

Mapei

Premium mortars, grouts & adhesives
Laticrete
High-performance tile & stone systems

Integrated systems, guaranteed performance

Schluter curbless shower systems are designed together—membrane, drain, and profiles—for leak-proof assemblies with lifetime warranties.

Our 5-Step Curbless Build

From assessment to handover, we follow a proven process that ensures proper drainage, accessibility, and watertight performance.

  • 5-8 days typical
  • Lifetime warranty
  • Certified installers

1

Assessment & Layout

Drain location, glass lines, clearances, and elevations.
We assess your space to determine optimal drain location, glass lines, clearances, and elevations. We confirm slope direction and tile size compatibility for the curbless design.
  • Drain placement planning
  • Glass line coordination
  • Slope direction mapping

2

Pre-slope & Substrate

Form single-plane slope to linear drain.
We form the single-plane slope to the linear drain and verify flatness outside the shower area for a flush entry. Substrate preparation ensures proper drainage.
  • Single-plane slope
  • Flush entry verification
  • Drainage testing

3

Waterproofing

Install continuous sheet membrane.
We install continuous sheet membrane and seal corners and penetrations per manufacturer instructions. The membrane integrates seamlessly with the linear drain system.
  • KERDI membrane system
  • Sealed corners
  • Drain integration

4

Tile Setting & Details

Align joints to sightlines; incorporate soft joints.
We align tile joints to sightlines and incorporate soft joints at perimeters and plane changes. Large format tiles work well with single-plane slopes.
  • Sightline alignment
  • Soft joints at transitions
  • Large format compatibility

5

Finish & Handover

Profiles, silicone, and water test.
We install profiles and apply silicone, then conduct water testing before glass installation. We provide care and maintenance briefing for your new curbless shower.
  • Profile installation
  • Water testing
  • Maintenance guidance

Ready for a seamless, accessible shower?

Get a detailed timeline and estimate for your curbless shower project. Our proven process ensures proper drainage and long-term performance.

Recent Curbless Shower Projects (Toronto Area)

See how we’ve built accessible, modern curbless showers across Toronto with single-plane slopes, linear drains, and continuous waterproofing.

Ready for Your Curbless Shower?

Join our satisfied customers across Toronto. Get a detailed estimate for your accessible, barrier-free shower project.

Everything you should know before building a curbless shower in Toronto

From slope planning to waterproofing details, this complete guide covers what every Toronto homeowner needs to know about professional curbless shower construction.

Curbless Shower Cost & Factors (Toronto)

Costs are driven by slope forming, waterproofing detail, drain type/location, tile size, and glass coordination. Linear drains and single-plane slopes often allow larger floor tiles and a cleaner aesthetic; centre drains require four-way pitch and typically favour mosaics. Condo projects may add coordination time for elevator bookings and quiet hours. Use the Calculator for a range; we’ll confirm scope after site assessment.

Drain placement & slope direction

Linear drains can be placed at the wall or threshold, letting the floor slope in one direction and simplifying layout. This helps with accessibility and reduces cuts around a centred drain. Where a centre drain is preferred, plan for multi-directional slope and smaller tiles for contouring. The target slope is about 1/4″ per foot towards the drain.

Waterproofing continuity

A curbless design relies on a continuous sheet membrane under the tile with sealed corners and penetrations. We integrate the membrane with the linear drain body to maintain continuity, then verify overlaps and terminations before tile.

Tile choice, grip & maintenance

Single-plane slopes let you use larger tiles on the shower floor with linear drains; mosaics add grip on steeper or multi-directional slopes. Choose finishes with appropriate slip-resistance ratings for wet areas and maintain with pH-neutral cleaners.

Movement joints & changes of plane

At perimeters and changes of plane, use elastomeric sealant (soft joints) rather than grout. This EJ171-aligned practice accommodates movement and protects the assembly long-term.

Glass lines, door swing & splash control

We align glass with slope and drain position, capture door drip lines with threshold drains where needed, and avoid pinning through critical membrane seams. Proper placement reduces overspray while keeping a clean, minimal look.

Accessibility & comfort

A flush entry removes tripping points and supports mobility aids. Single-plane slopes reduce foot fatigue and make squeegeeing quick—benefits for multi-generational homes seeking “age-friendly” bathrooms.

Professional standards & documentation

We follow manufacturer instructions for membranes and drains, include movement accommodation at perimeters, and document critical checks (slope, flood containment, sealant locations) before glass installation.

Free tile cost calculator with instant estimates based on your specific project requirements.

Why Choose Mallet Tile

Expert Installers

Waterproofing expertise

Since 2010

Trusted 15+ years

5.0 Google rating

Proven client satisfaction

WSIB/insured

Safety & Compliance

Service Areas

Toronto

Oakville

Muskoka

Burlington

Mississauga

Milton

Hamilton

Brampton

+ 100km radius from Toronto

Ready to Get Started?

Get your personalized bathroom tile installation estimate in just 2 minutes using our cost calculator.

Curbless Shower FAQs

Get answers to common questions about curbless shower construction, linear drains, and accessibility features.

No. Linear drains make curbless builds simpler by allowing a single-plane slope and larger tiles, but centre drains can work with a four-way pitch and mosaic floors. We recommend the option that best fits your room and accessibility goals.
Plan on about 1/4″ per foot towards the drain for reliable drainage and comfort. Pre-pitched bases and drain systems are designed around this target; we verify slope before waterproofing and tile.
We combine proper slope, strategic drain placement (often wall or threshold), glass alignment, and a continuous membrane tied into the drain body. This directs water to the capture zone while keeping the main floor flat.
At perimeters and changes of plane, we use elastomeric sealant (e.g., silicone) as soft joints instead of grout—per EJ171 guidance—to accommodate movement and protect the assembly.
Yes. The flush entry removes tripping points and improves access for mobility aids, while single-plane slopes simplify footing and cleaning—both helpful in multi-generational homes.
